2, 4 Needle Double Chain Stitch Machine with Needle Feeding for Attaching Waist Band on JeansMG series

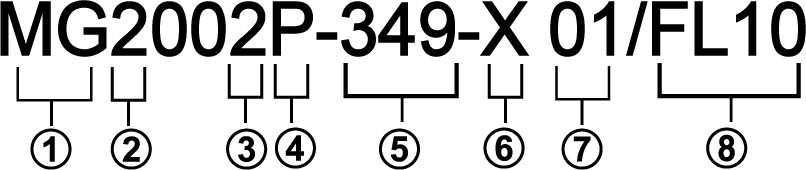

Numbering on Models


  1. Symbol of series
  2. Class No.
  3. Number of needles
  4. Puller system: No Indication = without puller, PS = Steel Upper Tooth Rollers,  P = Plastic Upper Tooth Rollers,  PR = Plastic Upper Tooth Rollers,  PC = Plastic Upper Tooth Rollers, For Curved Waist Bands
  5. Needle distance (in total): 349=34.9mm,  381=38.1mm,  318=31.8mm
  6. Stitch type: X = Double-chain stitch
  7. Needle arrangement: 01 = 2 needles, Total needle distance = 34.9 mm,   02 = 2 needles, Total needle distance = 38.1 mm,   03 = 2 needles, Total needle distance =  31.8 mm,   04 = 4 needles, Total needle distance = 38.1 mm, Needle distance per needle = 6.4 mm - 25.4 mm - 6.4 mm
  8. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Pressor foot lift) Needle stroke) Machine SpeedRemarks

MG2002P

2 Needle 4 Thread Needle Feeding Double Chain Stitch Machine for Attaching Waist Band of Jeans, with Puller (P = Plastic Upper Tooth Rollers)		244.8 - 50.82.1 - 6.49.032.04,000 (5,000)Please specify needle distance (gauge) when ordering the machine.

MG2002PC

2 Needle 4 Thread Needle Feeding Double Chain Stitch Machine for Attaching Curved Waist Band of Jeans, with Puller (P = Plastic Upper Tooth Rollers)		244.8 - 50.82.1 - 6.49.032.04,000 (5,000)Please specify needle distance (gauge) when ordering the machine.

MG2004P

4 Needle 8 Thread Needle Feeding Double Chain Stitch Machine for Attaching Waist Band of Jeans, with Puller (P = Plastic Upper Tooth Rollers)		484.8 - 50.82.1 - 6.49.032.04,000 (5,000)Please specify needle distance (gauge) when ordering the machine.

MG2004PS

4 Needle 8 Thread Needle Feeding Double Chain Stitch Machine for Attaching Waist Band of Jeans, with Puller (PS = Steel Upper Tooth Rollers)		484.8 - 50.82.1 - 6.49.032.04,000 (5,000)Please specify needle distance (gauge) when ordering the machine.
