Cylinder Bed, Looper in Line Feed, Double Chainstitch Machine, with Rear PullerVM series

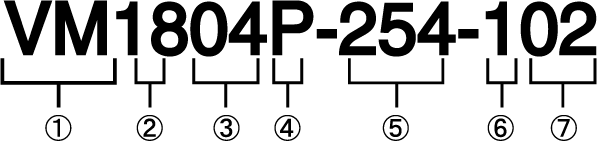

Numbering on Models


  1. Symbol of series
  2. Class No.
  3. Number of needles: 02 = 2 needles, 04 = 4 needles
  4. Rear puller: No Indication = without puller, P = with tooth rollers, PR = with flat rubber rollers
  5. Needle distance: 222 = 22.2 mm, 254 = 25.4 mm, 382 = 38.2 mm, NG = without gauge parts
  6. Fabric guide & tension roller: 0 = not equipped, 1 = equipped
  7. Submodel by application: 01 = For making front facing of dress shirts, brouses, pajamas, etc., 02 = For attaching elastic band at the waist of jogging pants etc., 03 = same as 02 but with a lower metering device.

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Pressor foot lift) Needle stroke) Machine SpeedRemarks

VM1804P-NG-102

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller)		48N/A1.4 - 3.67.033.04,500With a fabric guide and a tension roller. Without gauges.

VM1804PR-NG-102

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers)		48N/A1.4 - 3.67.033.04,500With a fabric guide and a tension roller. Without gauges.

VM1804P-254-102

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller)		4825.41.4 - 3.67.033.04,500With a fabric guide and a tension roller

VM1804PR-254-102

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers)		4825.41.4 - 3.67.033.04,500With a fabric guide and a tension roller

VM1804P-300-102

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller)		4830.01.4 - 3.67.033.04,500With a fabric guide and a tension roller

VM1804PR-300-102

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers)		4830.01.4 - 3.67.033.04,500With a fabric guide and a tension roller

VM1804P-382-102

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller)		4838.21.4 - 3.67.033.04,500With a fabric guide and a tension roller

VM1804PR-382-102

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers)		4838.21.4 - 3.67.033.04,500With a fabric guide and a tension roller

VM1804P-NG-003

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller), with Metering Device		48N/A1.4 - 3.67.033.04,500With a metering device. Without gauges

VM1804PR-NG-003

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers), with Metering Device		48N/A1.4 - 3.67.033.04,500With a metering device. Without gauges

VM1804P-254-003

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller), with Metering Device		4825.41.4 - 3.67.033.04,500With a metering device

VM1804PR-254-003

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers), with Metering Device		4825.41.4 - 3.67.033.04,500With a metering device

VM1804P-300-003

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller), with Metering Device		4830.01.4 - 3.67.033.04,500With a metering device

VM1804PR-300-003

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers), with Metering Device		4830.01.4 - 3.67.033.04,500With a metering device

VM1804P-382-003

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller), with Metering Device		4838.21.4 - 3.67.033.04,500With a metering device

VM1804PR-382-003

4 Needle 8 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers), with Metering Device		61238.21.4 - 3.67.033.04,500With a metering device

VM1806P-NG-004

6 Needle 12 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller)		612N/A1.4 - 3.67.033.04,500Without gauges

VM1806PR-NG-004

6 Needle 12 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers)		612N/A1.4 - 3.67.033.04,500Without gauges

VM1806P-430-004

6 Needle 12 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (P = Tooth Puller)		61243.01.4 - 3.67.033.04,500

VM1806PR-430-004

6 Needle 12 Thread Cylinder Bed Double Chain Stitch Machine for Attaching Elastic Tape, with Puller (PR = Flat Rubber Rollers)		61243.01.4 - 3.67.033.04,500
