High Speed Flat Bed Interlock Stitch MachineVF2300M class

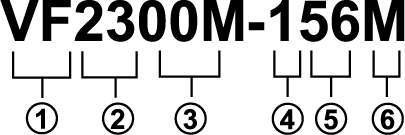

Numbering of Model


  1. Series Symbol
  2. Class No.
  3. Submodel
  4. Top Cover Thread Mechanism: 1 = With Top Cover Thread Mechanism
  5. Needle Distance: 30 = 3.2 mm, 40 = 4.0 mm,  48 = 4.8 mm,  56 = 5.6 mm,  64 = 6.4 mm
  6. Shape of Stitch Tongue on Stitch Plate: M = Standard

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine Speed

VF2300M

3(2) Needle 5(4) Thread Flat Bed Interlock Stitch Machine for General Seaming		3 (2)5 (4)5.6, 6.4 (3.2, 4.0, 4.8)1.4 - 3.61:0.7 - 1:2.07.0 (5.6)316,000

VF2303M

3(2) Needle 5(4) Thread Flat Bed Interlock Stitch Machine for Binding		3 (2)5 (4)5.6, 6.4 (3.2, 4.0, 4.8)1.4 - 3.61:0.7 - 1:2.07.0 (5.6)316,000
