4 Needle 6 Thread Flat-seamer, Feed-off-the-ArmFD-62G series

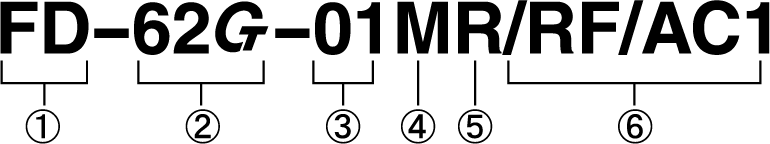

Numbering on Models


  1. Symbol of series
  2. Class No.
  3. Sub models
  4. Weight of fabric to be sewn: M = for medium to light weight fabric,  H = for heavy weight fabric
  5. Needle distance: R = 5.2 mm,  S = 6.0 mm
  6. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine SpeedRemarks

FD-62G-01MR

4 Needle 6 Thread Feed-off-the-Arm Single Cut Flatseamer, Applicable for Sewing Light to Medium Weight Fabric		465.21.6 - 2.51:0.7 - 1:1.58.030.04,200Cutting one side fabric edge

FD-62G-01MS

4 Needle 6 Thread Feed-off-the-Arm Single Cut Flatseamer, Applicable for Sewing Light to Medium Weight Fabric		466.01.6 - 2.51:0.7 - 1:1.58.030.04,200Cutting one side fabric edge

FD-62G-03MR

4 Needle 5 Thread Feed-off-the-Arm Single Cut Flatseamer, Applicable for Sewing Light to Medium Weight Fabric, for Attaching Tape		455.21.6 - 2.51:0.7 - 1:1.58.030.04,200Cutting one side fabric edge

FD-62G-03MS

4 Needle 5 Thread Feed-off-the-Arm Single Cut Flatseamer, Applicable for Sewing Light to Medium Weight Fabric, for Attaching Tape		456.01.6 - 2.51:0.7 - 1:1.58.030.04,200Cutting one side fabric edge

FD-62G-07MS

4 Needle 6 Thread Feed-off-the-Arm Both Cut Flatseamer, Applicable for Sewing Light Weight Fabric		466.01.6 - 2.51:0.7 - 1:1.56.030.04,200Cutting both side fabric edge

FD-62G-12MR

4 Needle 6 Thread Feed-off-the-Arm Both Cut Flatseamer, Applicable for Sewing Light to Medium Weight Fabric		465.21.6 - 2.51:0.7 - 1:1.56.030.04,200Cutting both side fabric edge

FD-62G-12MS

4 Needle 6 Thread Feed-off-the-Arm Both Cut Flatseamer, Applicable for Sewing Light to Medium Weight Fabric		466.01.6 - 2.51:0.7 - 1:1.56.030.04,200Cutting both side fabric edge

FD-62G-12HR

4 Needle 6 Thread Feed-off-the-Arm Single Cut Flatseamer, Applicable for Sewing Medium to Heavy Weight Fabric		465.21.6 - 2.51:0.7 - 1:1.56.030.04,200Cutting both side fabric edge

FD-62G-12HS

4 Needle 6 Thread Feed-off-the-Arm Single Cut Flatseamer, Applicable for Sewing Medium to Heavy Weight Fabric		466.01.6 - 2.51:0.7 - 1:1.56.030.04,200Cutting both side fabric edge

FD-62G-20HR

4 Needle 6 Thread Feed-off-the-Arm Flatseamer, Applicable for Surf Suit		465.21.6 - 5.0-7.030.03,500Without knives
