Cylinder Bed Interlock Stitch Machine with Top FeederVGS-8 series

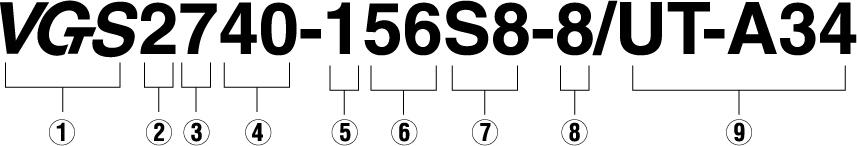

Numbering on Model

  1. Symbol of Series
  2. Class No.
  3. Number of needles: 7 = 2 & 3 needles
  4. Submodel by application
  5. Top Cover Thread Mechanism: 1 = With Top Cover Thread Mechanism
  6. Needle Distance: 32 = 3.2 mm,  40 = 4.0 mm,  48 = 4.8 mm,  56 = 5.6 mm,  64 = 6.4 mm
  7. Shape of Stitch Tongue on Stitch Plate: 8F = Fixed Stitch Plate Stitch Tongue
  8. With Active Thread Control
  9. Devices

Sewing Parts and Fabric Guides According to Various Seam Style


Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine SpeedRemarks

VGS2740-8F

3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Hemming, with with Top Feeder with Active Thread Control		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 3.61:0.6 - 1:1.87.031.05,500

VGS2700-8F

3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for General Seaming & Hemming with Active Thread Control		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 3.61:0.6 - 1:1.87.031.05,500

VGS3721-8F

3(2) Needle 5(4) Thread Cylinder Bed Interlock Stitch Machine for Hemming with Top Feeder, Left Hand Fabric Trimmer and Active Thread Control		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 3.61:0.7 - 1:2.07.031.05,500With Left Hand Fabric Trimmer

VGS2790-8F

3(2) Needle 5(4) Thread Unique Cylinder Bed Interlock Stitch Machine for Covering with Top Feeder with Active Thread Control		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 3.61:0.6 - 1:1.87.031.05,500Streamline Cylinder Bed

VGS2713-8F

3(2) Needle 5(4) Thread Unique Cylinder Bed Interlock Stitch Machine for Covering with Top Feeder with Active Thread Control		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.4 - 3.61:0.6 - 1:1.87.031.05,500
