"Speed & Dry" Overlock & Safety Stitch MachineAZ7000SDR-8 & AZ7500SDR-8 class

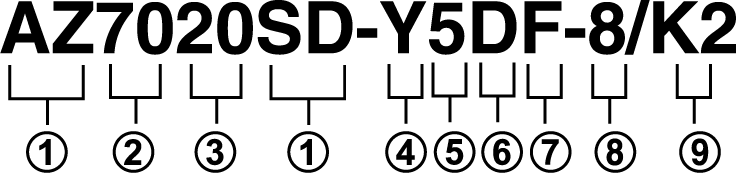

Numbering on Model


  1. Symbol of series
  2. Class No.: 70, 71 = Overlock,  75, 76 = Safety Stitch
  3. Submodel
  4. Needle distance: O = single needle,  X = 2.0 mm,  Y = 2.4 mm,  A = 3.2 mm,  C = 5 mm
  5. Overedge seam width: 2 = 2 mm,  4 = 4 mm,  5 = 5 mm,  6 = 6 mm,  7 = 7 mm,  8 = 8 mm
  6. Feeding mode: D = Differential Feed
  7. Type of upper knife: F = Flat knife
  8. Special Specification
  9. Devices

Specifications

Model) Number of Needles) Number of Threads) Needle distance) Over-edge seam width) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine SpeedRemarks

AZ7000SDR-8

1 Needle 3 Thread "Speed & Dry" Overlock Machine for Blind Hemming & General Seaming, with Hemming Guide		13-41.0 - 4.01:0.6 - 1:2.3623.77,500

AZ7003SDR-8

1 Needle 3 Thread "Speed & Dry" Overlock Machine for General Seaming		13-41.0 - 4.01:0.6 - 1:2.3623.77,500

AZ7020SDR-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine for General Seaming		242, 2.44, 51.0 - 4.01:0.6 - 1:2.3623.77,500

AZ7025SDR-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine for Inserting Reinforcing Tape		242, 2.44, 51.0 - 4.01:0.6 - 1:2.3623.77,500

AZ7120SDR-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine for Wide Seam Width		242.45, 6, 7, 81.0 - 4.01:0.6 - 1:2.3624.77,000

AZ7125SDR-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine for Inserting Reinforcing Tape, for Wider Seam Width		242.45, 6, 7, 81.0 - 4.01:0.6 - 1:2.3624.77,000

AZ7500SDR-8

2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine for General Seaming		253.2, 54, 5, 61.0 - 4.01:0.6 - 1:2.3623.77,500Safety Stitch

AZ7520SDR-8

Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine		3665, 61.0 - 4.01:0.6 - 1:2.35.523.77,500Safety Stitch

AZ7600SDR-1

2 Needle 5 Thread "Speed & Dry" Safety Stitch Machine for Jeans		2555, 72.0 - 5.01:0.6 - 1:2.3627.16,500Safety Stitch, with a tractor pressor foot
