2 Needle 4 Thread "Speed & Dry" Overlock Machine for Wide Seam Width with Condense Stitch FunctionAZ8213SD-8

AZ8213SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine for Wide Seam Width with Condense Stitch Function


For General Seaming for wider overlock seam width with condense stitch function for combined with ABT20 Automatic Back-Tacker

(2-02)-2本針地縫いオーバー(厚物)(2147).png AZ8120SD-8_Spec@3x.png

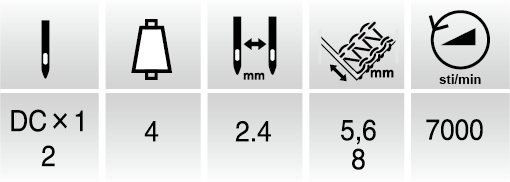

Specifications

AZ8213SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine for Wide Seam Width with Condense Stitch Function

Needle System
DCx27
Number of Needles
2
Number of Threads
4
Needle distance (mm)
2.4
Over-edge seam width (mm)
5, 6, 8
Stitch length (mm)
1.0 - 4.0
Feed regulation
Push button
Differential ratio
1:0.6 - 1:3
Differential feed regulation
Lever with micro-adjuster
Pressor foot lift (mm)
6
Needle stroke (mm)
24.0
Machine speed (sti/min)
7,000
Applications
For Wide Seam Width
Remarks
With Condense Stitch Function
