2 Needle 4 Thread "Speed & Dry" Overlock Machine with Top Feeder, for Piping with the CordAZF8026SD-8

AZF8026SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine with Top Feeder, for Piping with the Cord

For piping with the cord preventing twisting and plyshifts with the top feeder.

(2-07)-コード入りパイピング2本針オーバー(2170).png AZF8026G-10_Spec@3x.png

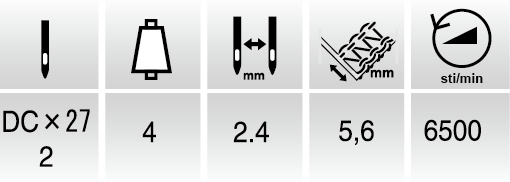

Specifications

AZF8026SD-8

2 Needle 4 Thread "Speed & Dry" Overlock Machine with Top Feeder, for Piping with the Cord

Needle System
DCx27
Number of Needles
2
Number of Threads
4
Needle distance (mm)
2.4
Over-edge seam width (mm)
5, 6
Stitch length (mm)
1.0 - 4.0
Feed regulation
Push button
Differential ratio
1:0.6 - 1:3
Differential feed regulation
Lever with micro-adjuster
Top feed back & forth movement (mm)
10
Top feed up & down movement (mm)
5.0 - 8.0
Top feed lift (mm)
8.0 - 8.5
Pressor foot lift (mm)
7
Needle stroke (mm)
26.0
Machine speed (sti/min)
6,500
Applications
For Piping with the Cord
