中文 Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine with Top FeederAZF8520SD-8
AZF8520SD-8
Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder
Multi-purpose 3 Needle Safety Stitch machine that is capable for 2 or 3 needle safety stitch and 1 or 2 needle overlock stitching.
For woven and knitted material.

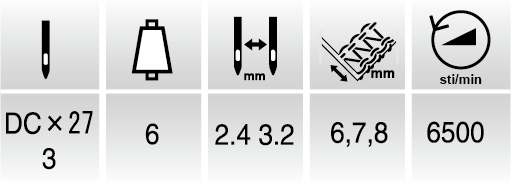

Specifications
AZF8520SD-8
Multi-purpose 3 Needle 6 Thread "Speed & Dry" Safety Stitch Machine with Top Feeder
- Needle System
- DCx27
- Number of Needles
- 3
- Number of Threads
- 6
- Needle distance (mm)
- 2.4, 3.2
- Over-edge seam width (mm)
- 6, 7, 8
- Stitch length (mm)
- 1.0 - 4.0
- Feed regulation
- Push button
- Differential ratio
- 1:0.6 - 1:3
- Differential feed regulation
- Lever with micro-adjuster
- Top feed back & forth movement (mm)
- 10
- Top feed up & down movement (mm)
- 5.0 - 8.0
- Top feed lift (mm)
- 8.0 - 8.5
- Pressor foot lift (mm)
- 7
- Needle stroke (mm)
- 26.0
- Machine speed (sti/min)
- 6,500
- Applications
- Multi-purpose
- Remarks
- Safety Stitch
