中文 Electronic Eyelet Buttonhole MachineAMF Reece ES-505
Specifications
| Stitch Type | Single needle double chainstitch with or without gimp (401) |
|---|---|
| Sewing Speed | up to 2,700 spm |

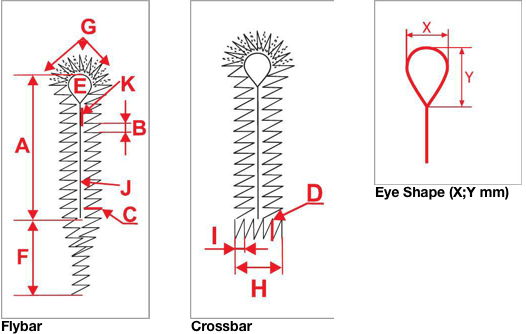

| Buttonhole Length <A> | Adjustable in increments of 1 mm 8 to 50 mm; 2 to 3.5 mm* 13 to 38 mm A with change of clamp kits: 14 to 26, 22 to 35 mm 13 to 30 mm 2 to 7 mm |

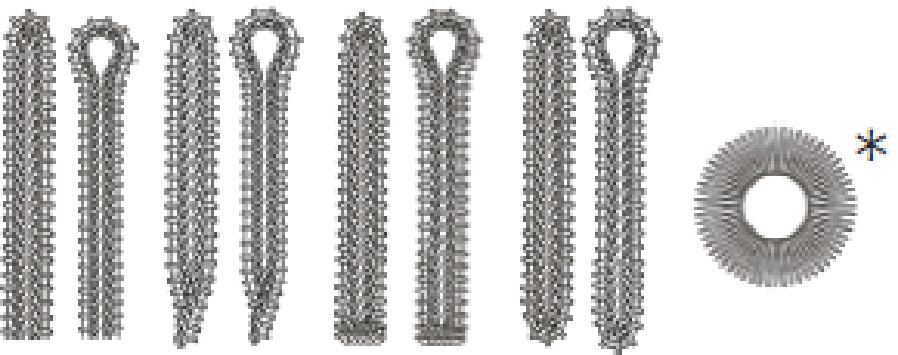

| Buttonhole Types | |

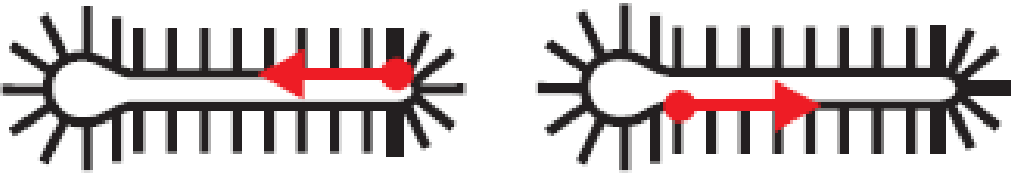

| Sewing Start in Round End Buttonhole |
|
| Stitch Density <B> | 0.5 - 2.0 mm adjustable in increments of 0.1 mm |
| Cutting Length | Automatic |
| Stitch Bite <C> | 1.6～3.0 mm |
| Eye Shape (X;Y) mm <E> |
No Eye; 2.2 x 3.0; 2.8 x 4.2; 3.0 x 4.6; 3.2 x 5.0; 3.4 x 4.2 |
| Flybar Length <F> | 3.0～20.0 mm |
| Number of Eye Stitches <G> | 4 ～ 20 |
| Number of Stitches in the round end |
4 ～ 20 |
| Length of Crossbar <H> | 3 ～ 6.5 mm |
| Crossbar density <I> | 0.5 - 1.5 mm adjustable in increments of 0.1 mm |
| Clamp Foot Height | 12 mm |
| Sewing Thickness | 8 mm |
| Buttonhole Cutting <J> | Cut Before, Cut After, No Cut, Partial |
| Cutting Space <K> | -0.5 ～ 1.2 mm |
| Thread Trimming | AF: top thread only RDE: all threads short CT: all threads short LTT: all threads long |
| Cycle Sewing | 21 buttonhole combinations in 47 programs |
| Sewing Light | in the head |
| Recommended Needle | AMF Reece Series 579, Size # 90, #100, #110 |
| Recommended Thread | High Quality Core Spun Polyester; size 80, 100, 120; gimp size 30 and higher |
| Air Requirement | 0.5 MPa (5 bar), (72 psi) |
| Electrical Requirement | 230V, 50/60 Hz 1 Ph |
|
Dimensions: Head & Table |
1200 mm (W) x 790 mm (D) x 1140 mm (H) |
| Weight | 230 kg |
| Dimension Packed | 1250 mm (W) x 1350 mm (D) x 1460 mm (H) |
| Weight | 330 kg |
