3 Needle 6 Thread Multi-Purpose Safety Stitch MachineCZ6520

CZ6520 & CZ6525

3 needle 6 thread multi-purpose safety stitch machine


Features:

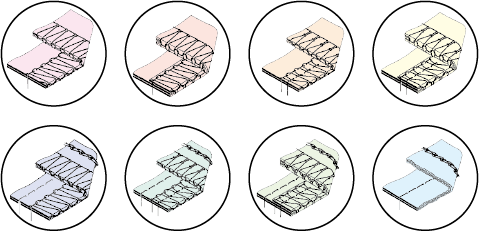

It can make various seam style of below illustrated without changing any part!



Remark:

The pressorfoot of CZ6520 has flat pressing surface.
The pressorfoot of CZ6525 has passage for tape on pressing surface.



Application:

All kinds of knitted and woven material
Light to medium weight material


Specifications

CZ6520

3 Needle 6 Thread Multi-Purpose Safety Stitch Machine

Needle System
DCx27
Number of Needles
3
Number of Threads
6
Needle distance (mm)
3.2 + 2.4
Over-edge seam width (mm)
5, 6
Stitch length (mm)
1.0 - 4.0
Feed regulation
Push button
Differential ratio
1:0.6 - 1:2.3
Differential feed regulation
Lever
Pressor foot lift (mm)
6.0
Needle stroke (mm)
23.7
Machine speed (sti/min)
6,500
Applications
Multi-purpose
Remarks
Safety Stitch
