3(2) Needle 5(4) Thread Feed-up-the-arm Interlock Stitch Machine for CoveringVT2513

VT2513

3(2) Needle 5(4) Thread Feed-up-the-arm Interlock Stitch Machine for Covering


(4-40)-上飾りなし平3本針かぶせ縫い.png (4-41)-上飾り付平3本針かぶせ縫い.png VT2513_Application@3x-80.jpg

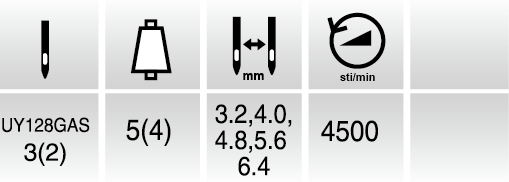

Specifications

VT2513

3(2) Needle 5(4) Thread Feed-up-the-arm Interlock Stitch Machine for Covering

Needle System
UY128GAS
Number of Needles
3 (2)
Number of Threads
5 (4)
Needle distance (mm)
4.8, 5.6, 6.4 (3.2, 4.0)
Stitch length (mm)
1.2 - 4.0
Feed regulation
Push button
Differential ratio
1:0.8 - 1:2.0
Differential feed regulation
Lever
Pressor foot lift (mm)
8.0
Needle stroke (mm)
31.5
Machine speed (sti/min)
4,500
Applications
For Covering
