Feed-up-the-Arm Interlock Stitch MachineVT2500 series

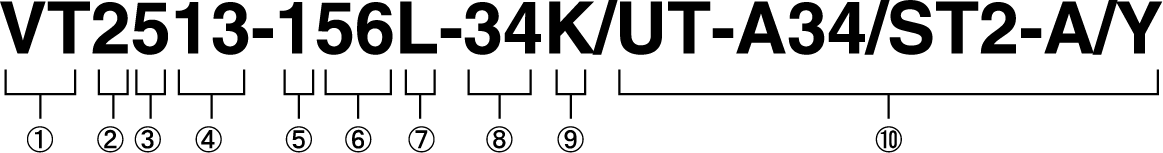

Numbering on Model


  1. Symbol of Series
  2. Class No.
  3. Number of needles: 5 = 2 & 3 needles (For VT2502: 2 needles, For VT2560: 4 needles)
  4. Submodel by application
  5. Top Cover Thread Mechanism: 0 = Without Top Cover Thread Mechanism,  1 = With Top Cover Thread Mechanism
  6. Needle Distance: 32 = 3.2 mm,  40 = 4.0 mm,  48 = 4.8 mm,  56 = 5.6 mm,  64 = 6.4 mm
  7. Shape of Stitch Tongue on Stitch Plate: M = For medium weight fabrics,  L = For light weight fabrics,  S = For special specifications
  8. Feed Layout
  9. Covering Style
  10. Devices

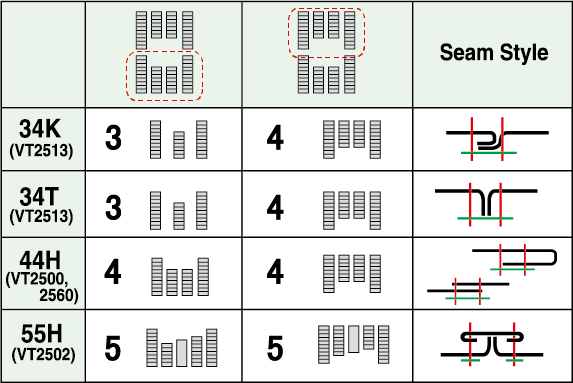

Feed Layout & Covering Style


Specifications

Model) Number of Needles) Number of Threads) Needle distance) Stitch length) Differential ratio) Pressor foot lift) Needle stroke) Machine Speed

VT2500

3(2) Needle 5(4) Thread Feed-up-the-arm Interlock Stitch Machine for General Seaming		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.2 - 4.01:0.8 - 1:2.08.031.54,500

VT2502

2 Needle 4 Thread Feed-up-the-arm Interlock Stitch Machine for Attaching Tape		246.4, 8.01.2 - 4.01:0.8 - 1:2.07.031.54,500

VT2513

3(2) Needle 5(4) Thread Feed-up-the-arm Interlock Stitch Machine for Covering		3 (2)5 (4)4.8, 5.6, 6.4 (3.2, 4.0)1.2 - 4.01:0.8 - 1:2.08.031.54,500

VT2560

4 Needle 6 Thread Feed-up-the-arm Interlock Stitch Machine		465.2, 5.6, 6.0, 6.41.2 - 4.01:0.8 - 1:2.06.531.54,500
