4 Needle 6 Thread Feed-up-the-arm Interlock Stitch MachineVT2560

VT2560

4 Needle 6 Thread Feed-up-the-arm Interlock Stitch Machine


For covering seam crotch seam patching and other seam on knitted garments@2x.png VT2560_Application@3x.png VT2560_Machine_UP@3x-80.jpg

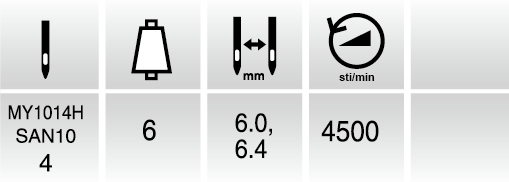

Specifications

VT2560

4 Needle 6 Thread Feed-up-the-arm Interlock Stitch Machine

Needle System
MY-1014H SAN10
Number of Needles
4
Number of Threads
6
Needle distance (mm)
5.2, 5.6, 6.0, 6.4
Stitch length (mm)
1.2 - 4.0
Feed regulation
Push button
Differential ratio
1:0.8 - 1:2.0
Differential feed regulation
Lever
Pressor foot lift (mm)
6.5
Needle stroke (mm)
31.5
Machine speed (sti/min)
4,500
