AZ8452L
1 Needle 3 Thread Cylinder Bed Overlock Machine for Attaching Elastic Tape, Fitted with Stepping Motor Driven Elastic Metering Device (without Cutter)
For more uniform finish, this machine can sew elastic tapes on the underside of fabrics so that the elastics do not stick to the pressor foot

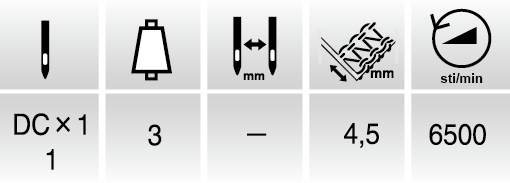

Specifications
AZ8452L
1 Needle 3 Thread Cylinder Bed Overlock Machine for Attaching Elastic Tape, Fitted with Stepping Motor Driven Elastic Metering Device (without Cutter)
- Needle System
- DCx1
- Number of Needles
- 1
- Number of Threads
- 3
- Needle distance (mm)
- -
- Over-edge seam width (mm)
- 4, 5
- Stitch length (mm)
- 1.0 - 3.5
- Feed regulation
- Push button
- Differential ratio
- 1:0.8 - 1:2.0
- Differential feed regulation
- Lever adjustable
- Pressor foot lift (mm)
- 6
- Needle stroke (mm)
- 24.5
- Machine speed (sti/min)
- 6,500
- Applications
- For Attaching Elastic Tape
- Remarks
- Tape Width: 6 mm - 12 mm
