2 Needle 4 Thread Cylinder Bed Overlock Machine for Attaching Elastic Tape, Fitted with Stepping Motor Driven Elastic Metering Device with Tape Cutter (Tape Width: 6 mm - 12 mm)AZ8471/K2/MA

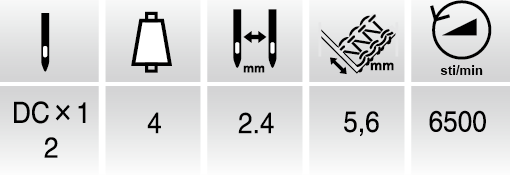

Specifications

Needle System

DCx1

Number of Needles

2

Number of Threads

4

Needle distance (mm)

2

Over-edge seam width (mm)

5, 6

Stitch length (mm)

1.0 - 3.5

Feed regulation

Push button

Differential ratio

1:0.8 - 1:2.0

Differential feed regulation

Lever adjustable

Pressor foot lift (mm)

6

Needle stroke (mm)

24.5

Machine speed (sti/min)

6,500

Applications

For Attaching Elastic Tape

Remarks

Tape Width: 6 mm - 12 mm
