中文 2 Needle 4 Thread Flat Bed Interlock Stitch Machine for Covering with Active Thread Control & Top FeederVFS2413-8

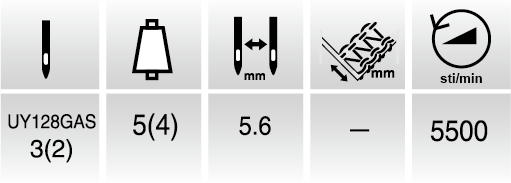

VFS2513-8 & VFS2413-8
3(2) Needle 5(4) Thread Flat Bed Interlock Stitch Machine for Covering with Active Thread Control & Top Feeder
Specifications
VFS2413-8
2 Needle 4 Thread Flat Bed Interlock Stitch Machine for Covering with Active Thread Control & Top Feeder
- Needle System
- UY128GAS
- Number of Needles
- 2
- Number of Threads
- 4
- Needle distance (mm)
- 3.2, 4.0
- Stitch length (mm)
- 1.4 - 3.6
- Feed regulation
- Push button
- Differential ratio
- 1:0.7 - 1:2.0
- Differential feed regulation
- Lever
- Top feed back & forth movement (mm)
- 1.6 - 5.0
- Top feed up & down movement (mm)
- 3.5 - 6.0
- Pressor foot lift (mm)
- 5.5
- Needle stroke (mm)
- 31
- Machine speed (sti/min)
- 5,500
- Applications
- For Covering
- Remarks
- With Top Feeder
